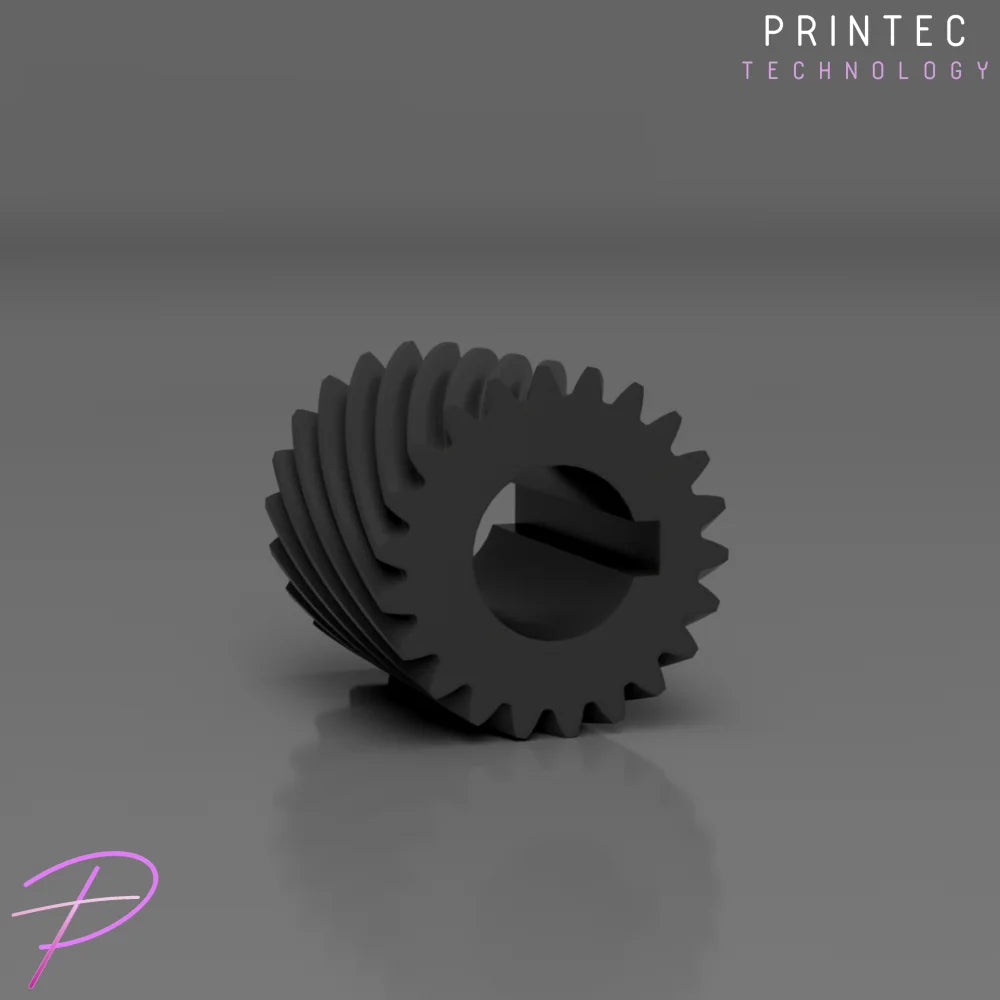

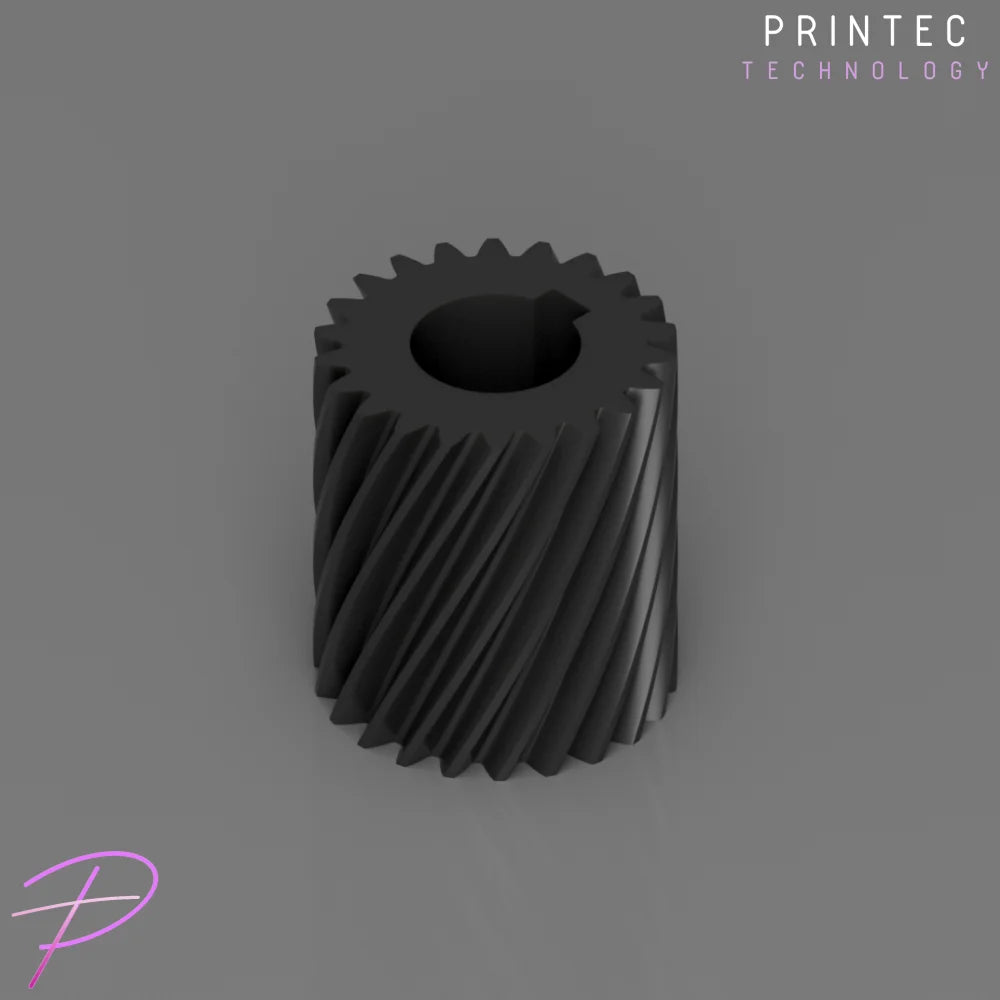

Gear (for gearbox shaft) suitable for Diosna S35 lifting mixer

„Hochwertiges Ersatz-Zahnrad passend für Diosna Hubkneter S35, S35/2G  Robustheit, Präzision und Zuverlässigkeit“

Thanks to precise manufacturing techniques and high-quality materials from PrinTec-Technology, this gear ensures smooth and reliable operation of your Diosna S35 kneading machine. It is an essential spare part that safeguards the long-term performance and efficiency of your machine, helping to keep it in optimal condition. The high quality of the gear guarantees safe and comfortable operation of the Diosna kneading machine, thus extending its service life and preventing downtime.

ℹ️ Material ℹ️

• Our high-strength, modified polyamide 12 – long-chain and reinforced with 15-20% carbon fiber – offers up to 130% greater strength and stability compared to POM. This exceptional strength makes the material virtually indestructible and ideal for demanding applications where durability and reliability are crucial.


✅️ Compatible with ✅️

• suitable for Diosna Hubkneter S35

• suitable for Diosna Hubkneter S35/2G

⚠️ Technical Specifications ⚠️

• Outer diameter: 54.15 mm ± 0.10 mm
• Inner diameter: 25.15 mm ± 0.05 mm
• Width of the keyway/key: 8.00mm

• Number of teeth: 22T.
• Height: 60.00 mm ± 0.15 mm
• Heat resistant up to: approx. 205°
• Color: Black

ℹ️ Assembly instructions ℹ️

• Ensure that no foreign matter such as abrasion, wear particles, defects, or dirt is present in the gearbox. If this is the case, we recommend a thorough cleaning or flushing of the gearbox. Use only fresh, suitable oil to guarantee optimal function and longevity of the gear and all other gearbox components. Before installing the gear, also check that all other components are undamaged.

✅️ Scope of delivery ✅️

• 1x Gear suitable for Diosna lifting mixer S35 / S35-2G

Didn't find the spare part you were looking for, or do you need a replacement for this or another model? Then please don't hesitate to contact us. We'll be happy to help you get the right part as quickly as possible.
