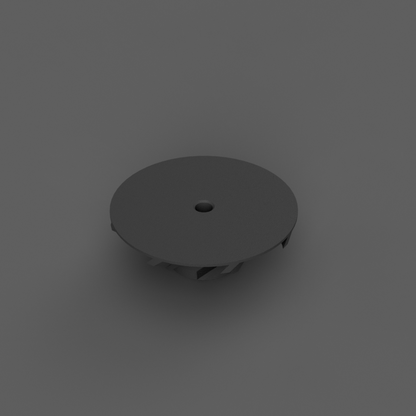

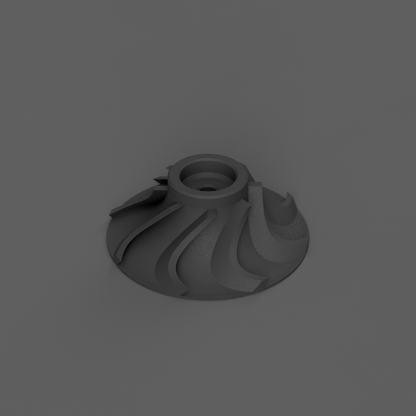

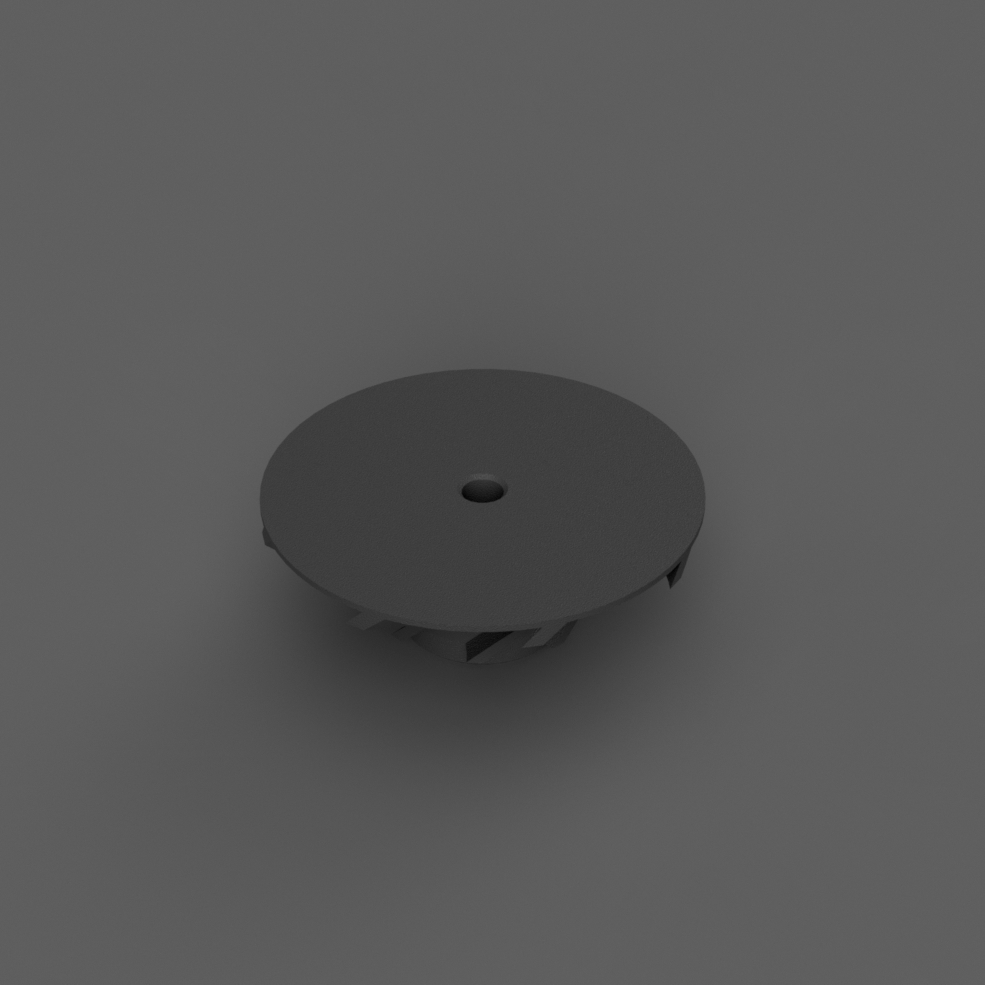

Turbine/impeller (reinforced) suitable for Dyson DC23

" Reinforced turbine compatible with Dyson DC23 brush head – Precise fit and long-lasting performance "

Optimize the performance of your Dyson DC23 vacuum cleaner with this reinforced turbine (impeller), specially designed for the brush head by PrinTec-Technology and compatible with the Dyson DC23. This high-quality replacement part boasts a precise fit and exceptional durability to restore or enhance the functionality of your vacuum cleaner.

The turbine was precisely tailored to the requirements of the Dyson DC23, ensuring that your brush head delivers full cleaning performance after the repair. This keeps your vacuum cleaner in top condition and ensures optimal cleanliness in your home.

ℹ️ Assembly instructions ℹ️

• The turbine's drive shaft diameter is approximately 5.00 mm, while the Dyson drive shaft has a diameter of approximately 5.15 mm. To correctly mount the turbine onto the drive shaft, gently heat the drive shaft so that it can be pressed into the new turbine.

ℹ️ Technical specifications ℹ️

•     Outer diameter : approx. 52.00 mm
•     Diameter of the bore for the drive shaft : approx. 5.00 mm
•     Height: approx . 18.50 mm ± 0.50 mm
•     Material : PA-12 GF plastic


✅️ Compatible with the following models ✅️

• Suitable for Dyson brush head part no. 906565-32

✅️Scope of delivery✅️

• 1x reinforced turbine (impeller) in grey, suitable for Dyson DC23 brush head

Ensure consistent, reliable cleaning performance with this perfectly fitting replacement part compatible with your Dyson DC23 brush head.
