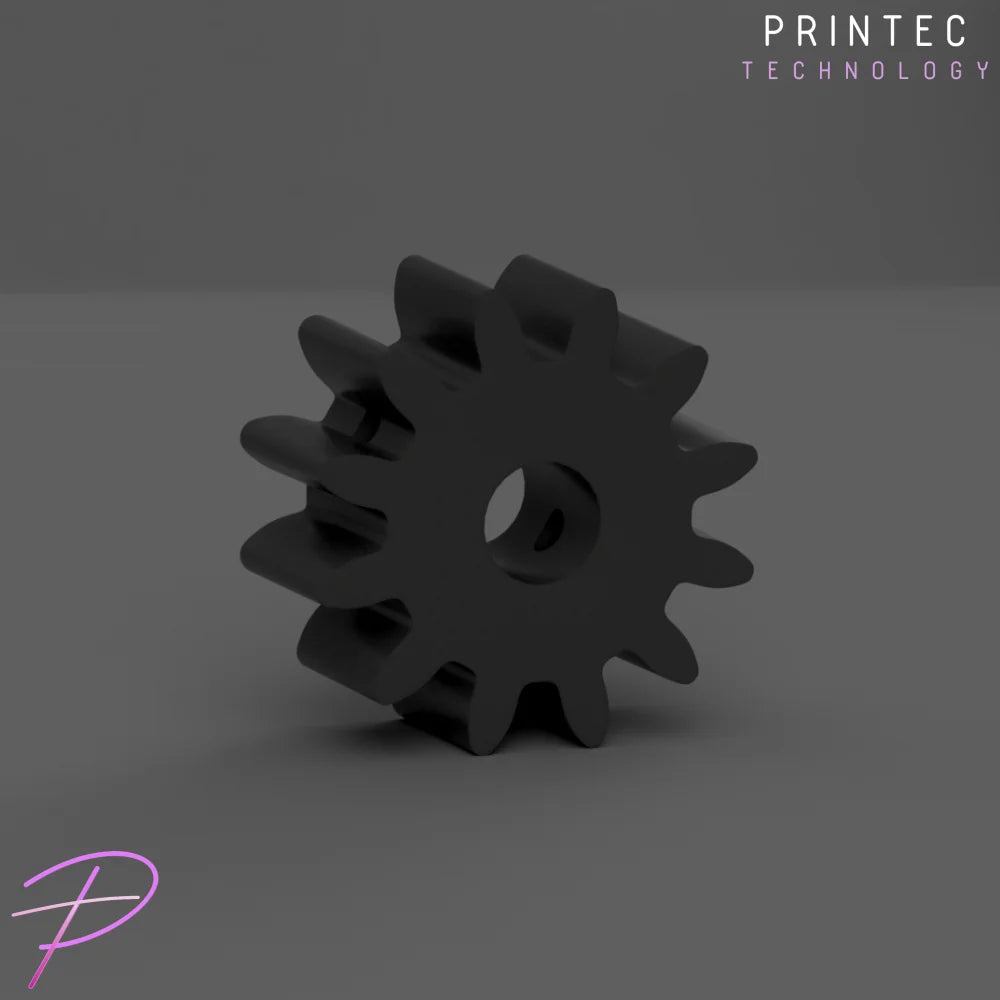

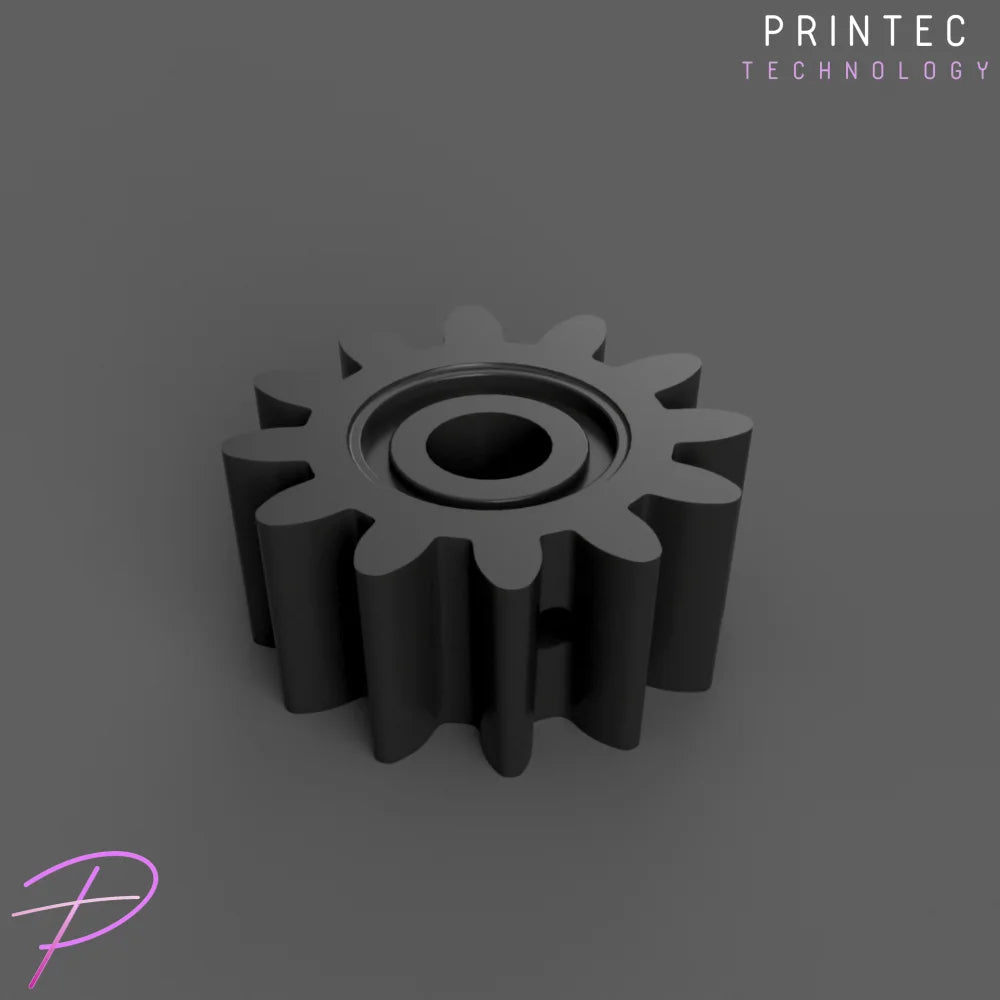

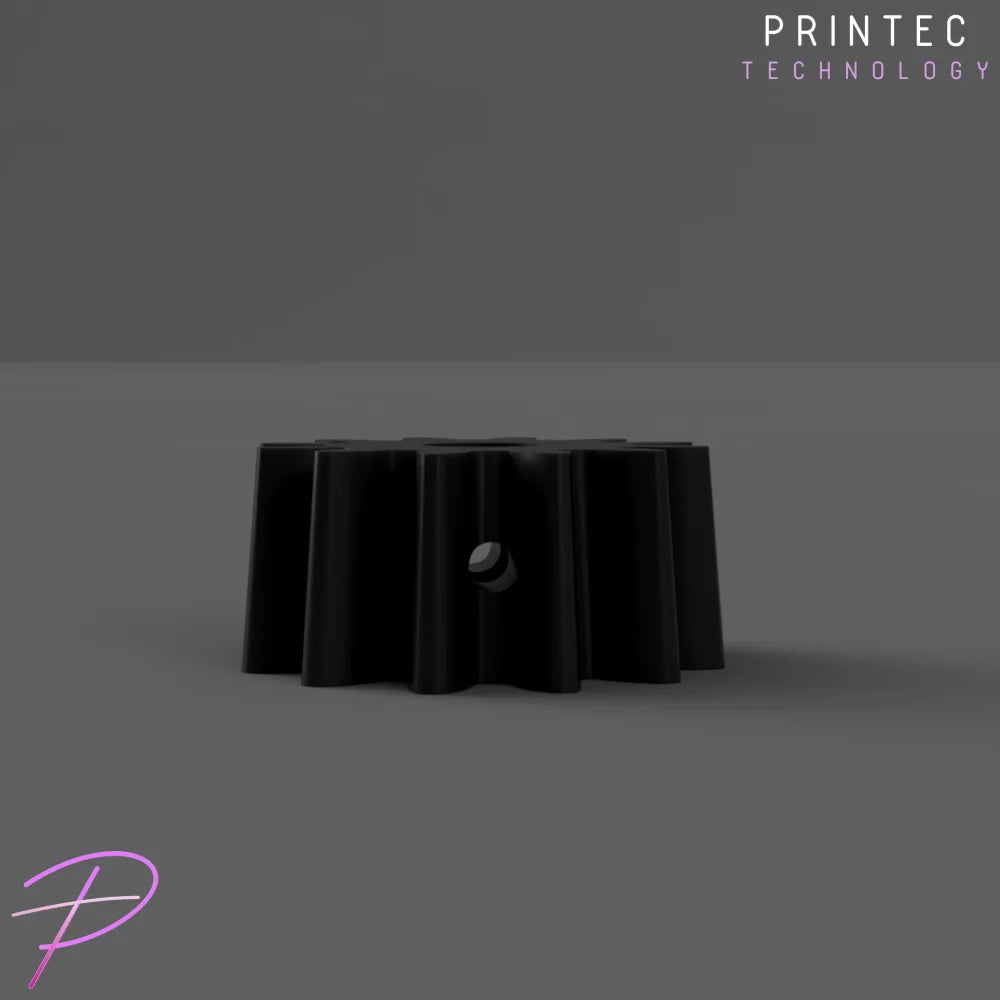

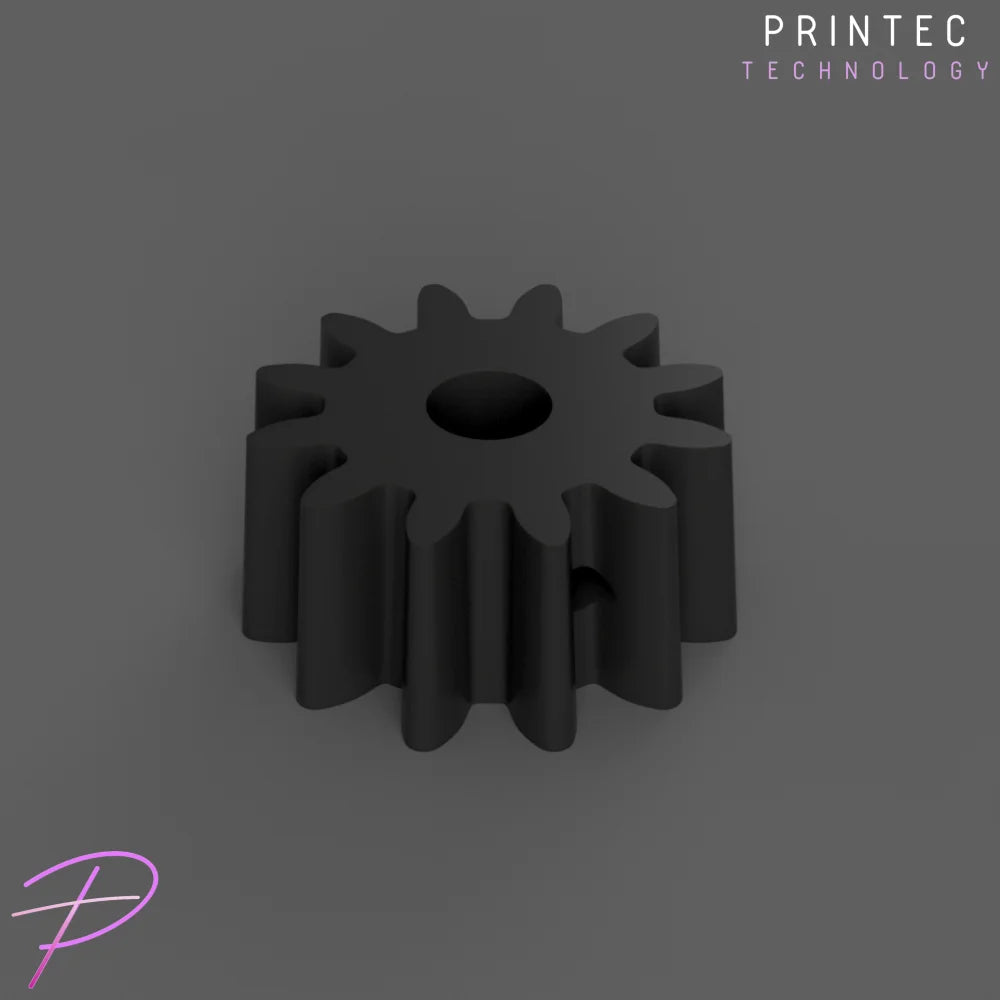

Lescha - Atika concrete mixer (gear)

“High-quality Lescha-ATIKA gear: Reliable spare part for concrete mixers”

The Lescha-ATIKA gear is a high-quality replica spare part, specially developed for the concrete mixers listed below. Manufactured in Germany, it impresses with its first-class quality and reliability. This gear was specially designed for use in concrete mixers and is offered as a single piece.

ℹ️ Material ℹ️

• High-strength polyamide 12 and another long-chain polyamide, reinforced by the addition of 15–20% carbon fiber, have about 120% better properties compared to the original standard polyamide.

ℹ️ Technical data ℹ️

• Largest outer diameter:                                             ~ 84.28 mm

• Smallest outer diameter:                                           ~ 78.40 mm

• Height:                                                                         ~ 37.50 mm

• Dimensions of the drive shaft (minimally conical):   ~ 20.1-20.2 mm
• Number of teeth:                                                            12T

• Diameter of the hole for spring pin:                           ~ 8.0 mm

✅️ Compatible with the following models ✅️

• Lescha
• Atika
• Other models from Atika/Lescha from the 1960s.
