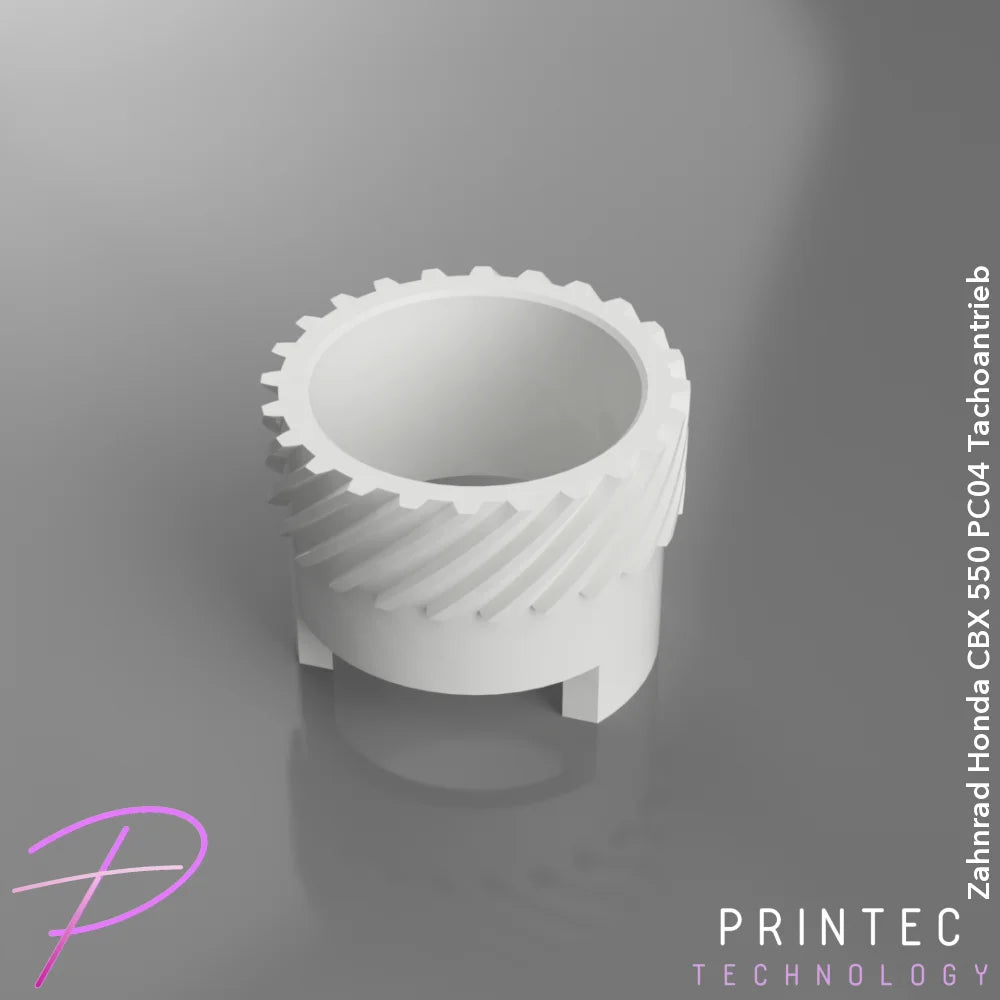

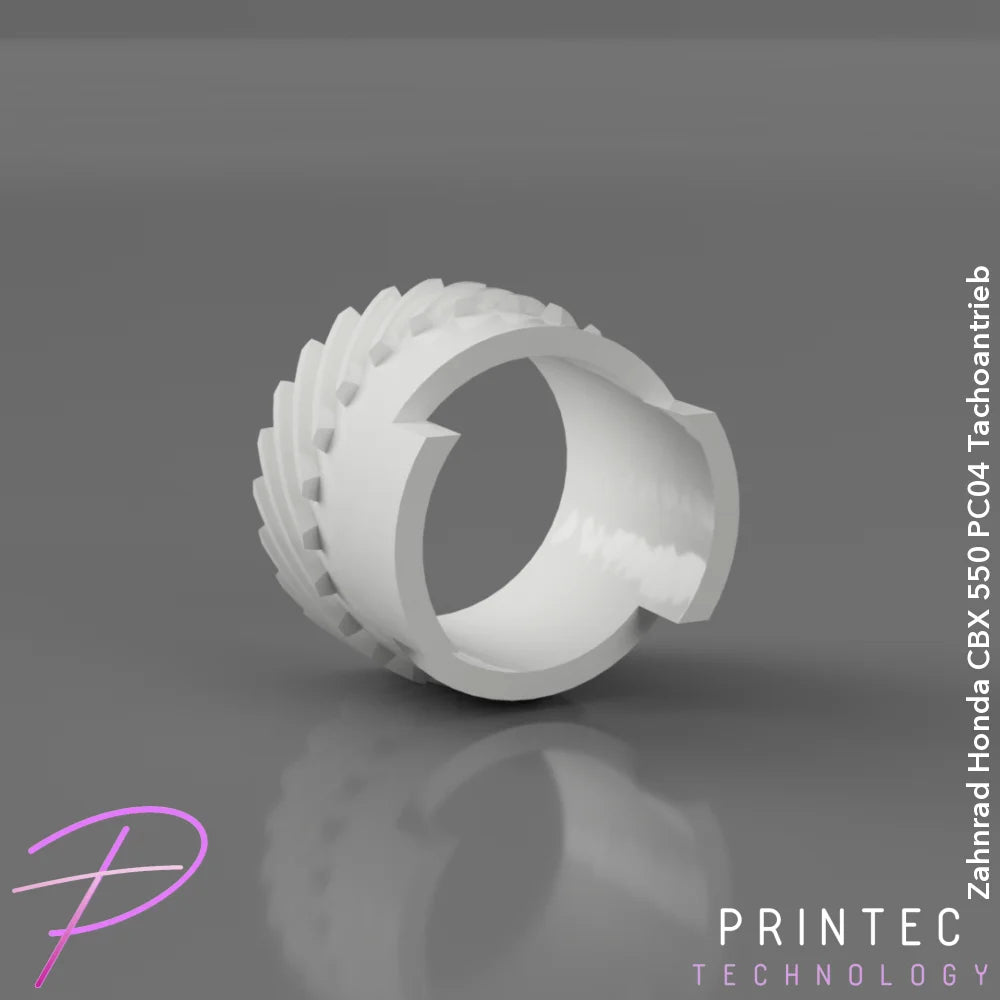

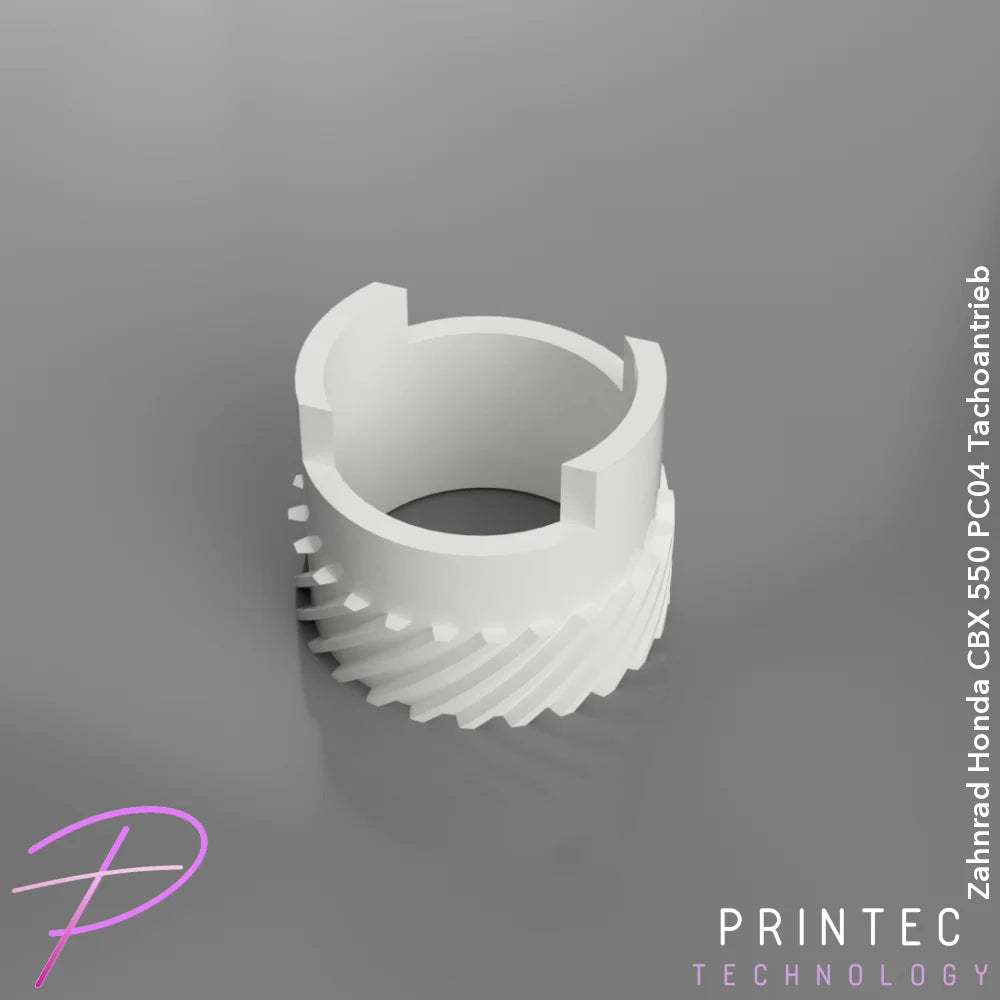

Gear suitable for Honda CBX 550 PC04 speedometer drive

"Robust, reinforced speedometer drive gear suitable for Honda CBX 550 PC04 – Precise fit and long-lasting performance"

This robust and reinforced speedometer drive gear, compatible with the Honda CBX 550 PC04, is precisely matched to the speedometer's requirements to restore full functionality after repair. It offers a precise fit and long-lasting performance. The gear is constructed from high-strength polyamide 12 and long-chain polyamide reinforced with 15-20% glass fiber reinforced plastic (GF) for maximum stability and durability.

The gear was precisely matched to the requirements of the speedometer and ensures that your speedometer will function fully again after the repair.

ℹ️ Assembly instructions ℹ️

Before installation, ensure that the metal worm shaft rotates freely. If it is blocked or difficult to move, this may indicate the presence of foreign objects. In this case, we recommend disassembling the housing and cleaning it thoroughly to prevent future damage.

ℹ️ Technical specifications ℹ️

• Outer diameter (toothed edge): approx. 32.30 mm
• Bore diameter: approx. 25.00 mm
• Height: approx. 24 mm
• Number of teeth: 24T
• Heat resistant up to: approx. 205°

ℹ️ Material ℹ️

• High-strength polyamide 12 and long-chain polyamide, reinforced with 15-20% GF.

✅️ Compatible with the following models ✅️

• Honda CBX 550 PC04 (Year of manufacture 1982-1985)

✅️ Scope of delivery ✅️

• 1x speedometer drive wheel (suitable for Honda CBX 550 PC04)

Ensure consistent, reliable speedometer operation with this perfectly fitting replacement part.
